Sydney Airport Multipart Cover

Mascot Engineering were proud to partner with Ward Civil to deliver a custom product for installation in a key piece of Sydney’s infrastructure.

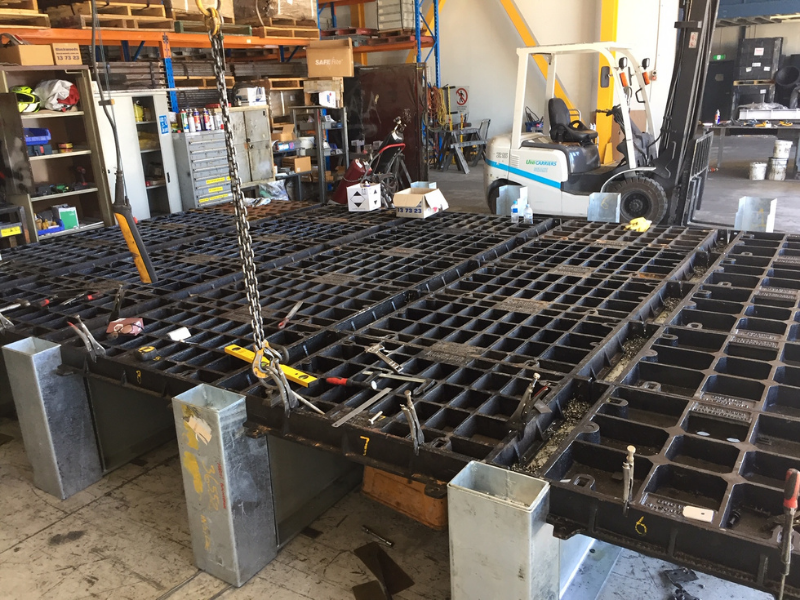

The team at Mascot Engineering were engaged by Ward Civil to assist with a design, certification and manufacture of a 25-part gas & watertight access cover and frame system for SACL (Sydney Airport Corporation Limited).  Designed to withstand the extreme heavy loads (900kN) of Airport use, the Mascot Multipart Cover was assembled locally in our new dedicated fabrication facility in Western Sydney… complete with four removable & structural galvanised steel beams to allow unrestricted access for authorised services.

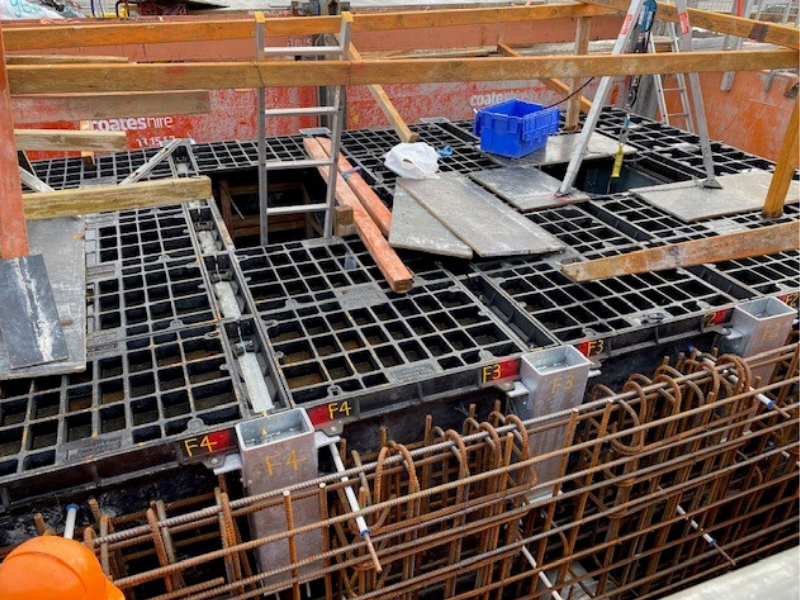

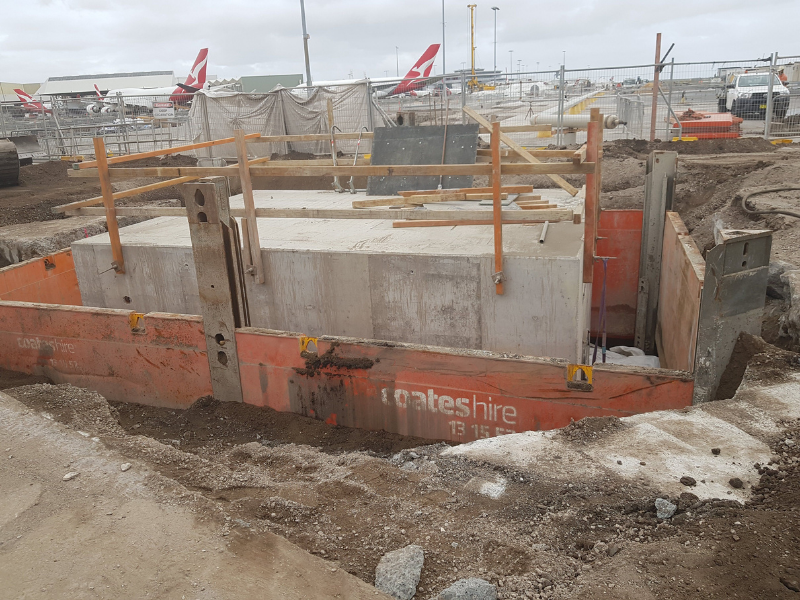

The Mascot Multipart is being installed as part of the Sydney Airport Northern Ponds Upgrade project which began in November 2019.  Due for completion by the end of the year, the project will allow for additional capacity for refuelling and servicing at Bays 83-85.  The custom multipart cover system was delivered with certified lifting jigs to ease installation and measured approximately 5220mm x 3425mm or 18sqm (clear opening).

As Australia’s oldest and most experienced manufacturer of access covers, we specialise in assisting contractors and consultants with the design and manufacture of custom products for infrastructure projects that are delivered Australia wide.


Load Ratings & Standards

Mascot Engineering manufacture products that comply with both AS & EN standards.  Standards vary around the world, however AS3996 and EN124 are considered the leading standards internationally for access covers and grating.  Independent, third party load test certificates for our products are available for both EN124 and AS3996.

You are currently on our International website (click here for our Australian website). More information about standards can be found here.

Back to Case Studies
  • Client
    Ward Civil
  • Location
    Mascot, NSW
  • Products
    Multipart Access Cover
