Trench Runs

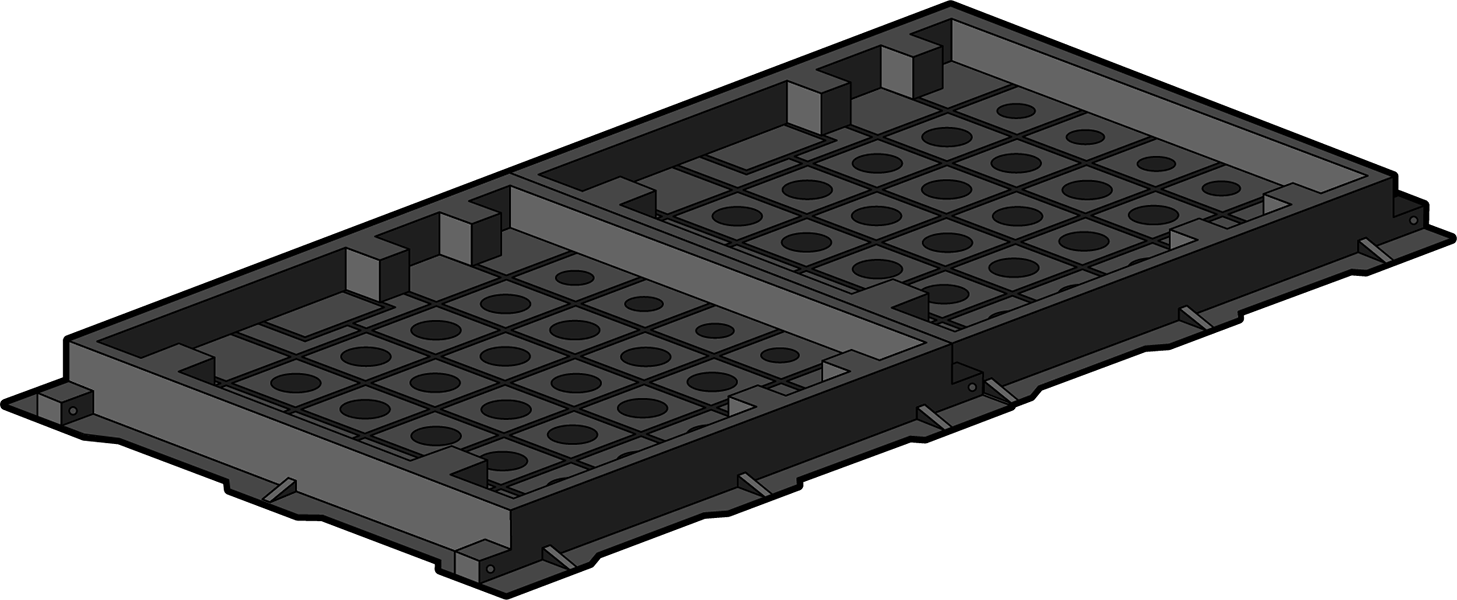

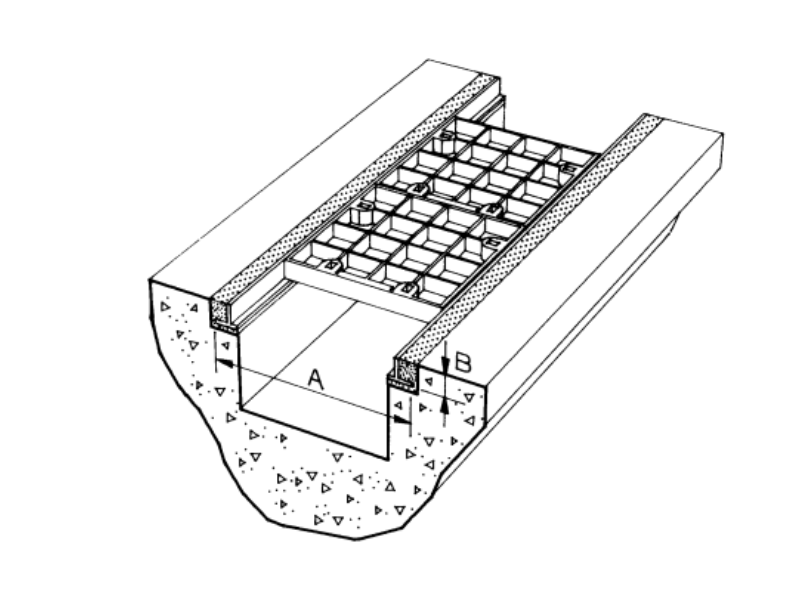

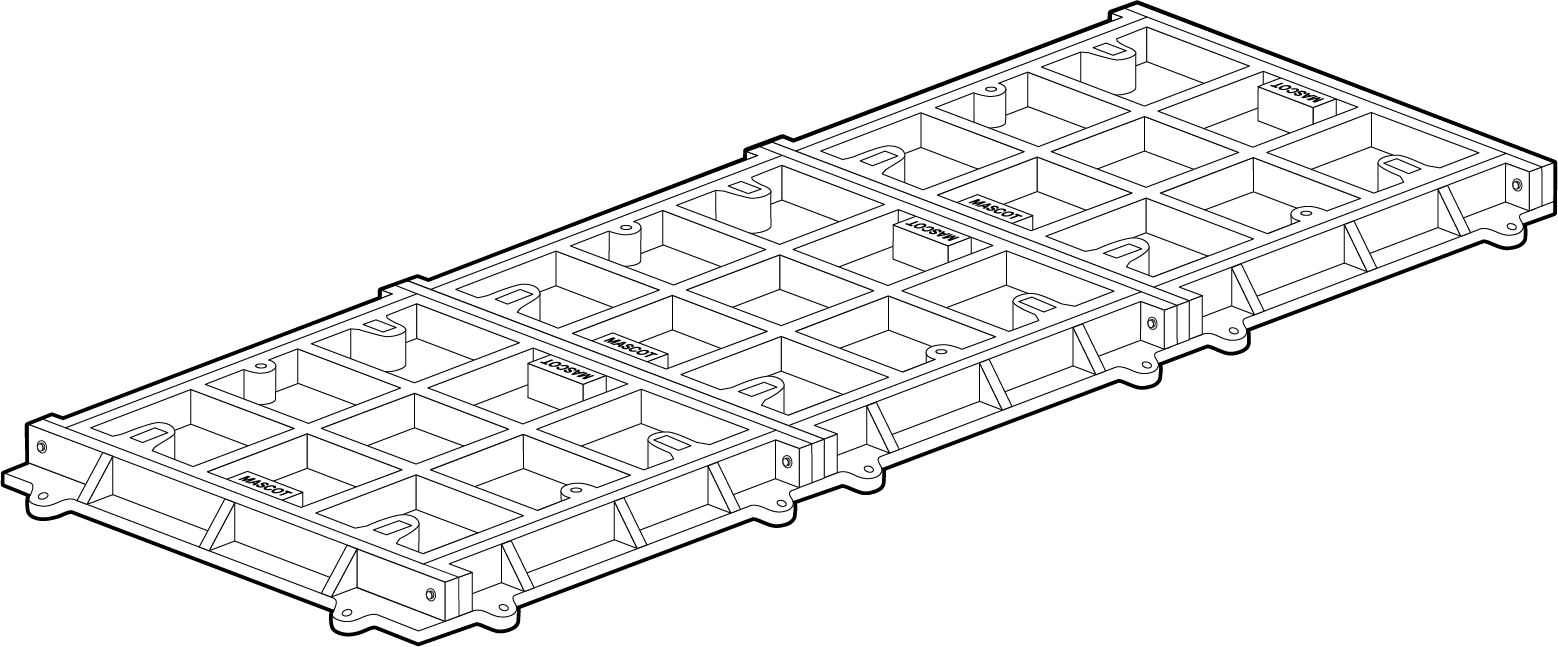

Mascot Engineering’s Trench Covers combine any number of standard size covers in a long single frame.  Trench runs are used when a single part does not provide a large enough clear opening or when smaller individual covers are required to ease lifting and access.  Designed to to meet the load ratings specified in EN124-2, continuous Trench Runs can be used to cover and provide access to underground fuel lines, stormwater or sewer systems, electricity and communications enclosures and ducting, valves and many more.

All covers in the system can be removed to provide unrestricted access… alternatively one cover (in any part of the system) can be removed easily with our lifting keys to provide access to a specific section.

Security & Non-Rocking

All Mascot Engineering Access Covers require lifting keys to gain access, however they are also fitted as standard with a boltdown facility to help prevent unauthorised removal of the cover. The bolts are included and also allows our clients to fit additional security type bolts if required.

Our range of gas and airtight iron covers are machine finished to their matching frame to extremely tight tolerances and if installed level and as per our instructions will be non-rocking.

Available in Class C250, D400 and F900 as per EN 124-2, all Mascot Engineering Access Covers are load tested whilst supported on only two sides to ensure no loss of strength or product integrity when used in a trench run or multipart system.

Made for you

Using standard sized covers, all Access Cover Trench Runs are assembled in our facility, checked for accuracy and marked to assist installation on site. They are pulled down and carefully prepared for transport to site.

A detailed installation instruction document will be prepared by our team and supplied with your tailored solution.
