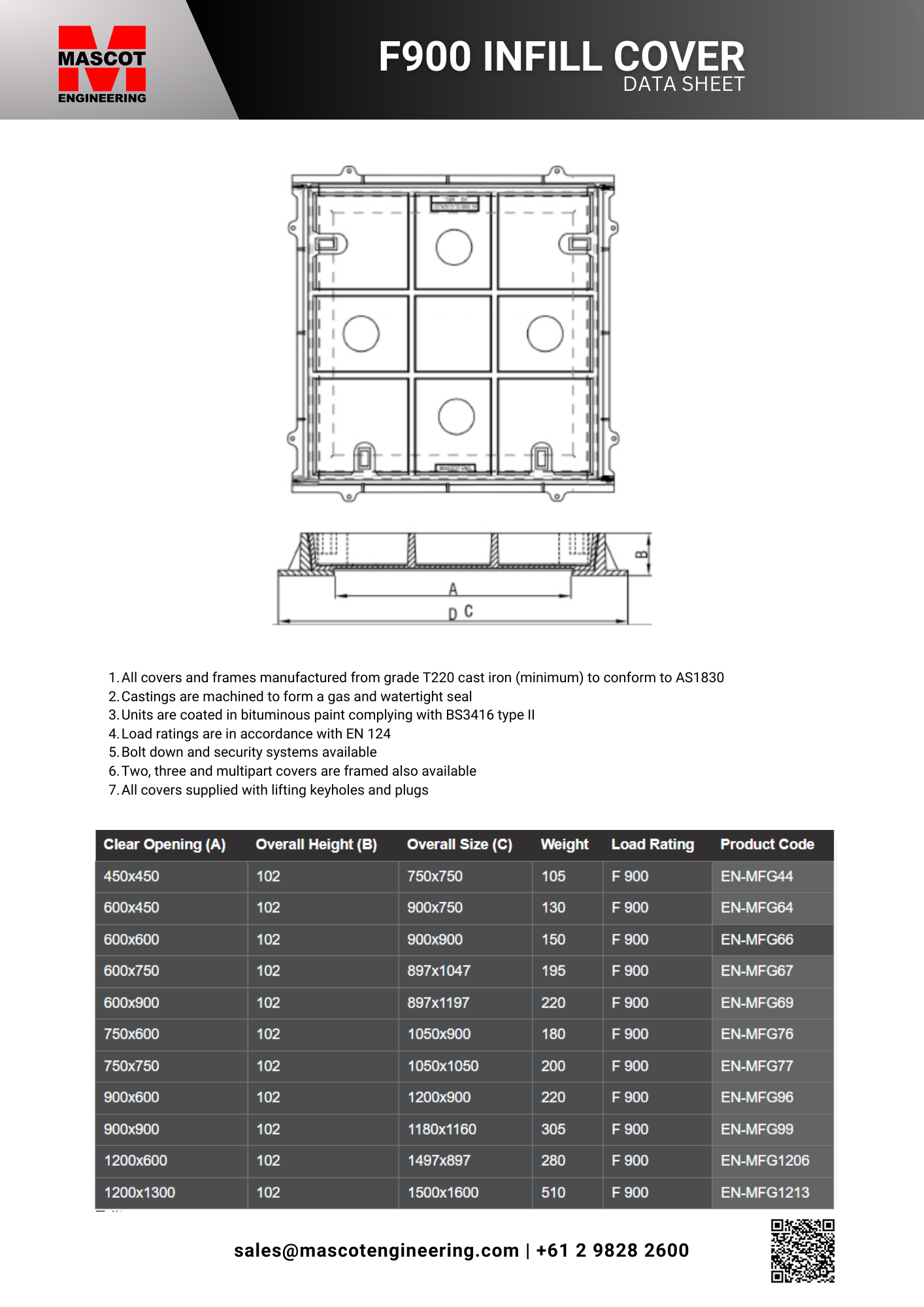

F900 Concrete Infill Covers

EN124 Class F900

Areas imposing particularly high wheel loads, e.g. aircraft pavements

Clear Opening (A)Overall Height (B)Overall Size (C)WeightLoad RatingProduct Code
450x450102747x747104F900EN-MFG44
600x450102897x747130F900EN-MFG64
600x600102897x897150F900EN-MFG66
600x750102897x1047195F900EN-MFG67
600x900102897x1197220F900EN-MFG69
750x6001021047x897195F900EN-MFG76
750x7501021047x1047210F900EN-MFG77
900x6001021197x897220F900EN-MFG96
900x9001021197x1197350F900EN-MFG99
1200x6001021497x897281F900EN-MFG1206
1200x13001021497x1591510F900EN-MFG1213

All dimensions in mm. All weights in kg. All data correct at time of print and may vary. Two, three and multipart Covers & Frames also available.

2 Part, 3 Part and Continuous Trench Run

Mascot’s range of heavy duty Gastight Concrete Infill Covers can be arranged in any configuration to suit the requirements of your project. This includes single part, 2 Part, 3 Part, a continuous trench run, or a multipart configuration.

Multipart Concrete Infill Covers

Multipart units combine standard size Gastight Covers in multiple rows, generally when the clear opening exceeds 1200mm in both directions.

Multipart Covers can be designed to suit all shapes and sizes based on your specification. The team at Mascot Engineering will design your Multipart Cover and provide the relevant engineering support as needed.

Mascot Engineering’s system relies on a number of ‘rows’ of covers divided by fixed or removable beams to achieve the desired clear opening. The beam size will depend upon the load rating as well as the beam’s length. In all cases unless requested, beams are supplied cut to length and galvanised.
